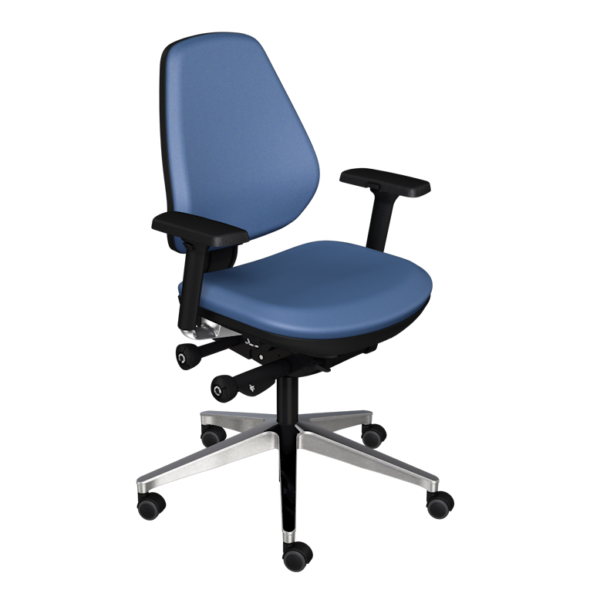

Biofit MVMT Pro Series Task Chair

Options

Biofit Colors Catalog

ARMS

3D – Arms

Cast aluminum arm upright with arm adjustment mechanism and 3.5″ wide x 9″ long x 7/8″ thick urethane arm pad. Arm pad can be adjusted in three dimensions: 3.5″ vertically, 2″ front-to-back, and 1″ left-to-right for a total armrest width adjustment of 2″.

SEAT BACK OPTION

Medium		Tall

Backrest height adjustment feature allows for adjustment up or down 3″, quickly and securely (without the use of a noisy ratchet mechanism). Back measures 17.5″ wide by 15″ for medium back and 19.5″ for tall back with 3/8″ thick (5-ply) back board and 1.5″ foam thickness. 4 mm (5/32″) thick polypropylene back panel with edge guard.

CASTER/GLIDES

RC – Soft Resistance Caster		HG – High Glides

Resistance Caster – Two inches in height, with dual soft-wheels. Casters resist movement when the seat is unoccupied. Plastic collar around caster stem to match base. Standard casters have grey tread.

High Glides – 2.25″ high black glides have a base diameter of 2.125″ and are made of first class polyamide with a steel grip ring stem. ESD version is indicated by a yellow ring around the stem of the glide.

BASES

Polished Aluminum 25.6″W		Polished Aluminum 28.6″W		Glass Reinforced Composite 25.6″W

Large and Medium, five-legged, solid cast aluminum base with caster-to-caster diameter of 28.7″ and maximum width of 27.4″ for large, and 25.6″ and maximum width of 24.4″ for medium. T-cross-section legs ensure cleanability, and endure test loads of 1.5-2x BIFMA strength requirements. Features standard 50-mm tapered hub (1° 26′ 16″ (Morse) taper) with gauge line elevation of 113 mm from the caster insert plane. The base is cast out of UNI EN 46100 aluminum with a robotically polished top surface to ensure quality and consistency.

Glass Reinforced, Five-legged composite base with caster-to-caster diameter of 25.6″ and maximum width of 24.4″. T-cross-section legs ensure cleanability, and endure test loads of 1.5-2x BIFMA strength requirements. Features standard 50 mm, steel-reinforced, tapered hub (1° 26′ 16″ (Morse) taper) with gauge line elevation of 113 mm from the caster insert plane. The base is cast out of glass-filled nylon. Available only on low-height models.
