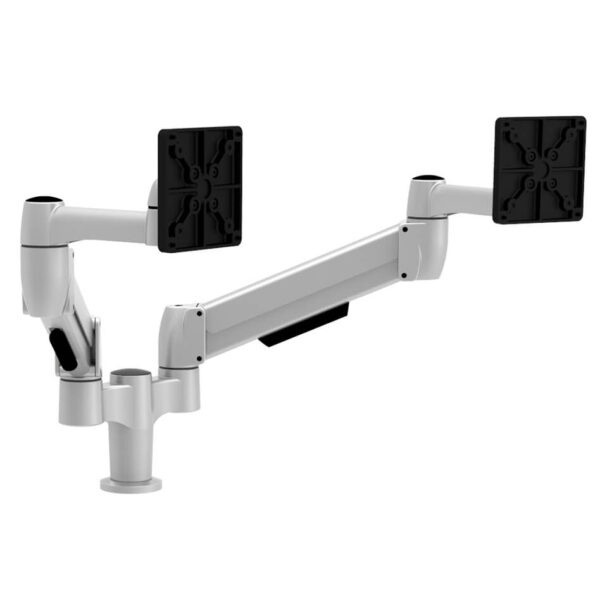

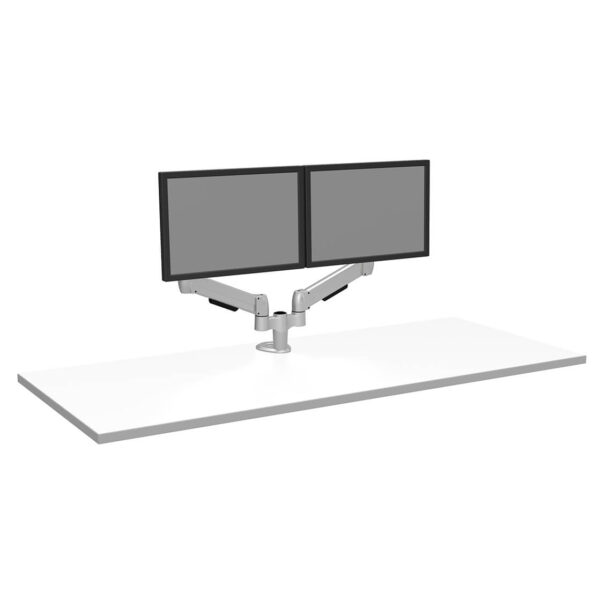

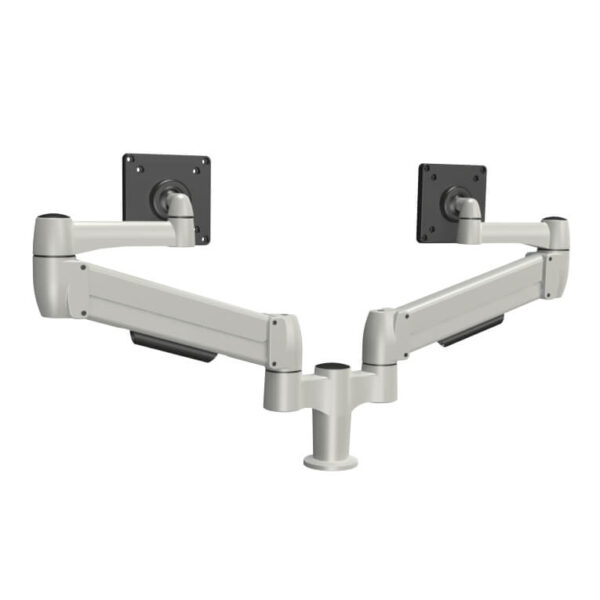

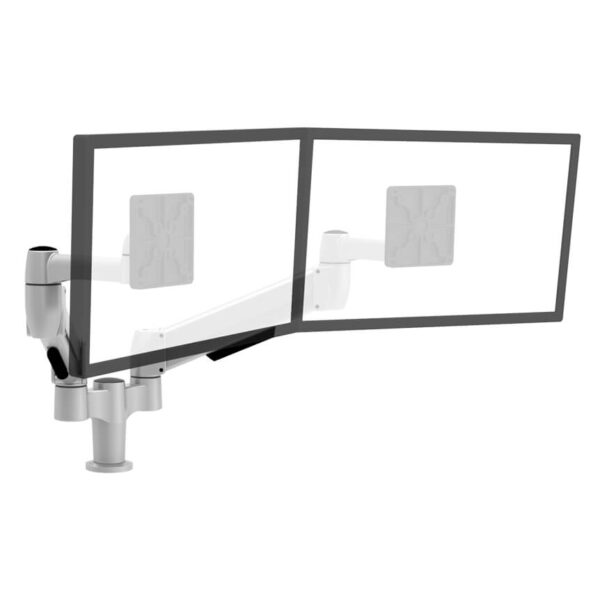

Name: ErgoAdvantage Modula Double Monitor Arm
SKU: 64.S02
Price: 427.35 USD
Availability: InStock

Description

The ErgoAdvantage Modula Dual Monitor Arm System is an absolute must for those who use multiple flat-panel monitors at their desk and offers a broad range of options to fit the system to the person (and not the other way around). Standard VESA and universal Quick-change mounts make it easier to install your monitor, and a variety of desk mounting options, from bolt-thru to clamp-on, give you the choice of creating a temporary or more permanent installation that will fit virtually any desktop or grommet array. The System supports monitors from 2 to 30 pounds, appropriate for both today’s lighter-weight hi-tech monitors and heavier-duty units.

We offer a wide array of arm specifications that allow different degrees of monitor rotation, horizontal and vertical movement, tilt and more to give you the most freedom of movement for your users’ application and work style. We also feature a Sit-stand desk option which offers a greater range of horizontal adjustment for adjustable-height desks. Each System is available in your choice of today’s hottest colors for the office.

If you don’t see something that fits your space (or simply aren’t sure), call us and we’ll help you choose!

64.SA02BT-PLT – ErgoAdvantage Modula Double Monitor Ar Installations

64.SA02BT-PLT - ErgoAdvantage Modula Double Monitor Ar Installations

ErgoAdvantage Modula Monitor Arm Brochure

Specifcations

Technical Specifications

•   Thermo – fused polyester finish
•   High pressure die – cast aluminum construction
•   5 – axis position adjustment
•   Conforms to VESA 75 mm x 75 mm, 100 mm x 100 mm and 100 mm x 200 mm mounting patterns
•   40 degrees of tilt (20 degrees /20 degrees–)
•   360 degree monitor rotation
•   360 degree arm rotation
•   2.5” (63.5 mm) depth in the folded position
•   4” (355.6 mm) of travel (7” (177.8 mm) above the center of hub and 7” (177.80 mm) – below the center of hub)
•   Gas spring standard 5-16 lbs. (2.67 kg–7.25 kg)
•   Gas spring options, 2-10 lbs. (.90 kg–4.53 kg) and 15-32 lbs (6.8 kg 14.51 kg)
•   Quick Change Mount and Direct Mount for monitor application
•   Mounts available: Bolt through, C-Clamp, Large C-Clamp, Grommet, Single Resolve, Double Resolve, Race, Wall, Adjustable Slat-walls and a multitude of panel system brackets.

Benefits

•   Security – Keep your monitors and hardware safe with anti-theft features.
•   Storage – Keep monitors up and out of the way to increase work flow area.
•   Organization – Easy access and alignment for multiple monitor or laptop applications.
•   Ergonomic – A wide range of adjustments puts your monitor in the most ergonomic position for your needs.
•   Space – Increases space efficiencies by positioning the monitor on an arm. This makes wasted space usable.
•   Technology – As your technology needs change, so will the Modula. Flexible and adaptable for the inevitable change.
•   Environment – Sustainability is an inherent design feature.

Environmental Design Attributes

Arm:
• Recycled content of aluminum – 100%
• Recyclable aluminum after use – 100%

Cardboard Packaging:
• Recycled content – 20%
• Recyclable after use – 100%

Pulp Tray:
• Recycled content – 100%
• Recyclable after use – 100%

Plastic Packaging:
•   Low density polyethylene
•   Recycled content – 30%
•   Recyclable after use – 100%

Options

How to select options

1. MOUNTING OPTIONS:

BT – VESA MOUNTING PLATE

75 mm x 75 mm, 100 mm x 100 mm and 100 mm x 200 mm mounting patterns

BT-QC – QUICK CHANGE UNIVERSAL MONITOR MOUNT
ADD $10

2. ARM RANGE: determine your extension range

A – STANDARD
adds 6.2″ extension from the center of the mount

A – LONG
adds 10.7″ extension from the center of the mount ADD $30

AXP – XP
adds 12.7″ extension from the center of the mount, plus an additional point of articulation ADD $50

XXP – LONG XP
adds 21.3″ extension from the center of the mount, plus an additional point of articulation ADD $80

S – SIT-STAND
adds 5″ extension from the center of the mount and 3.9″ in height to allow monitor to adjust from seated to standing positions

3. WEIGHT RANGE:

V400GS – 2 to 10 lbs.

Standard – 5-16 lbs.

V950GS – 15-30 lbs.

4. OPTIONAL HEIGHT EXTENSION: add 4, 6 or 8′ additional height to the 5″ hub

X4 – 4″ extension ADD $10

X6 – 6″ extension ADD $20

X8 – 8″ extension ADD $25

5. MOUNTING OPTIONS:

BT – BOLT-THROUGH 5″ H

C-CLAMP 5″ H #CC ADD $20

GT – GROMMET 5″ H ADD $20

CL – LARGE C-CLAMP 5″ H
with enlarged base ADD $20

AC – ABOVE DESK MOUNT 5″ H ADD $20

CUSTOM MOUNTS: We carry mounting solutions compatible with Steelcase, Allsteel, Haworth, Teknion, Knoll and more. Call us for a custom quote for mounting solutions engineered to these manufacturers’ specifications.

6. FINISH COLOR:

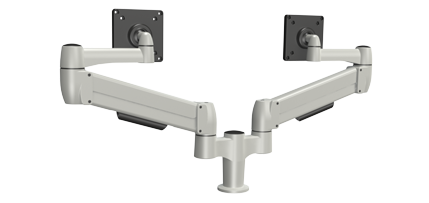

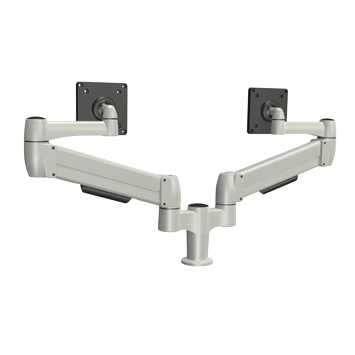

PLT – Platinum

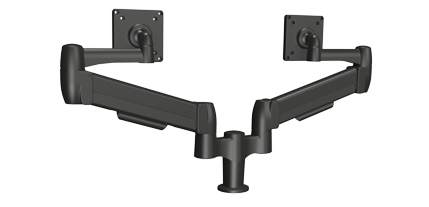

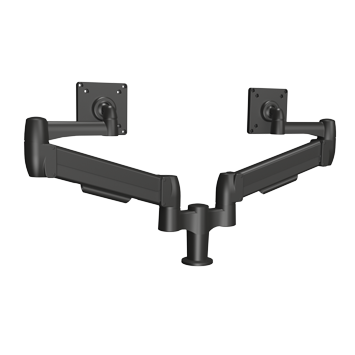

BLK – Black

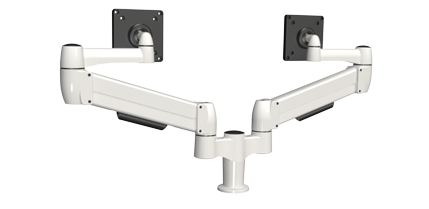

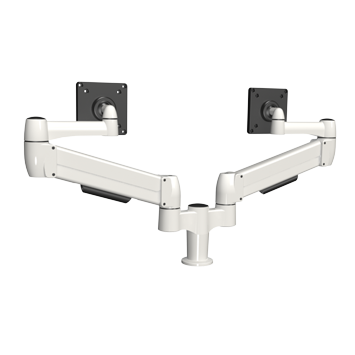

WHT – White

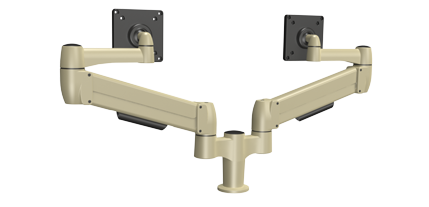

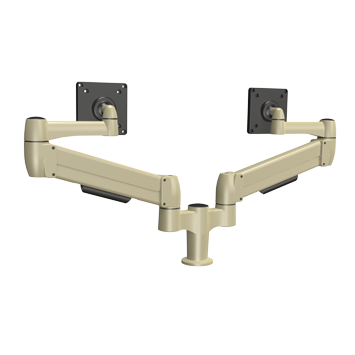

CHM – Champagne

7. ADDITIONAL OPTIONS:

SSB003 - SECURITY SCREW (locks monitor to arm mount, requires Torx security bit to remove)

SSB003 – SECURITY SCRE
(locks monitor to arm mount, requires Torx security bit to remove)
ADD $10

HB-SEC – SECURITY SET SCREW
(locks monitor arm into the hub) ADD $20

SSB-019 – TOUCH SCREEN STOP
adds rotational stop knobs at each point of articulation to stop motion when, for instance, using a touchscreen monitor ADD $45

SSB-018 – 180-degree ROTATION STOP
rotational limiter is added to hub to help prevent monitor collisions ADD $10
