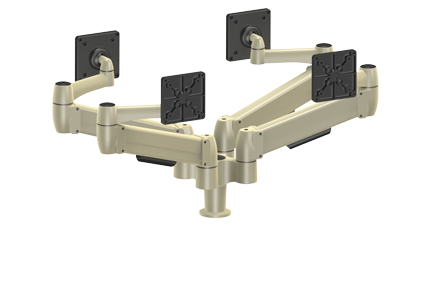

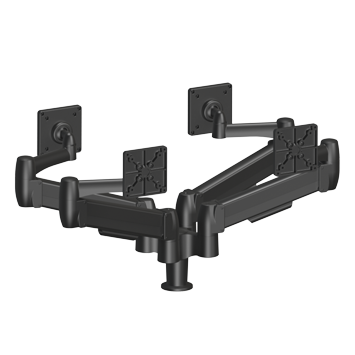

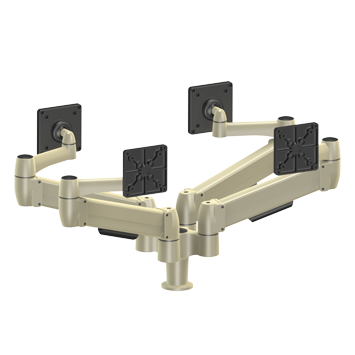

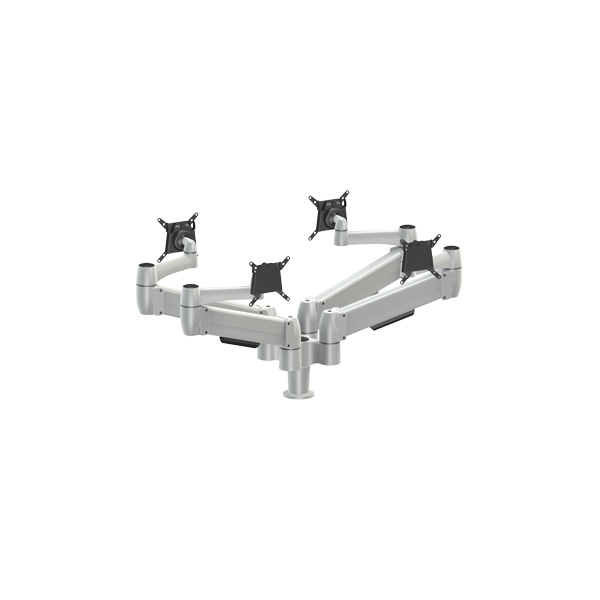

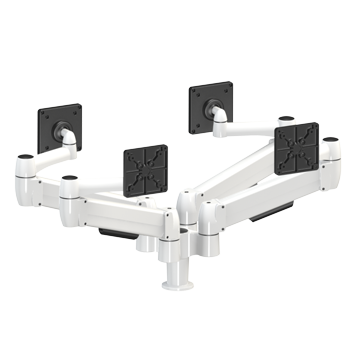

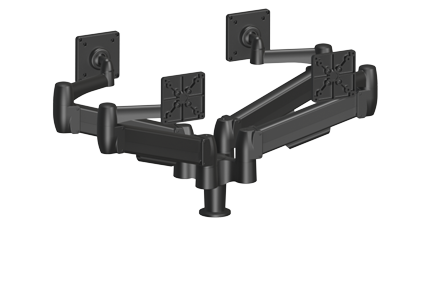

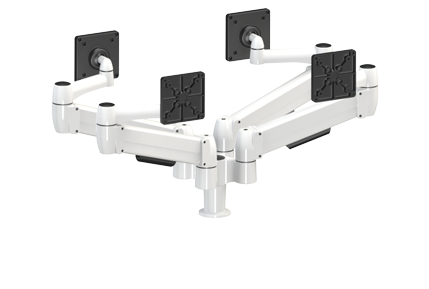

ErgoAdvantage Modula Quad 4-Monitor Arm

Specifcations

Technical Specifications

•   Thermo -fused polyester finish
•   High pressure die – cast aluminum construction
•   5 – axis position adjustment
•   Conforms to VESA 75 mm x 75 mm, 100 mm x 100 mm and 100 mm x 200 mm mounting patterns
•   40 degrees of tilt (20 degrees /20 degrees–)
•   360 degree monitor rotation
•   360 degree arm rotation
•   2.5” (63.5 mm) depth in the folded position
•   4” (355.6 mm) of travel (7” (177.8 mm) above the center of hub and 7” (177.80 mm) – below the center of hub)
•   Gas spring standard 5-16 lbs. (2.67 kg–7.25 kg)
•   Gas spring options, 2-10 lbs. (.90 kg–4.53 kg) and 15-32 lbs (6.8 kg 14.51 kg)
•   Quick Change Mount and Direct Mount for monitor application
•   Mounts available: Bolt through, C-Clamp, Large C-Clamp, Grommet, Single Resolve, Double Resolve, Race, Wall, Column, SpaceBeam 1, SpaceBeam 2, Adjustable Slat-walls and a multitude of panel system brackets.

Benefits

•   Security – Keep your monitors and hardware safe with anti-theft features.
•   Storage – Keep monitors up and out of the way to increase work flow area.
•   Organization – Easy access and alignment for multiple monitor or laptop applications.
•   Ergonomic – A wide range of adjustments puts your monitor in the most ergonomic position for your needs.
•   Space – Increases space efficiencies by positioning the monitor on an arm. This makes wasted space usable.
•   Technology – Flexible and adaptable for the inevitable change.
•   Environment – Sustainability is an inherent design feature.

Environmental Design Attributes

Arm:
•   Recycled content of aluminum – 100%
•   Recyclable aluminum after use – 100%

Cardboard Packaging:
•   Recycled content – 20%
•   Recyclable after use – 100%

Pulp Tray:
•   Recycled content – 100%
•   Recyclable after use – 100%

Plastic Packaging:
•   Low density polyethylene
•   Recycled content – 30%
•   Recyclable after use – 100%
