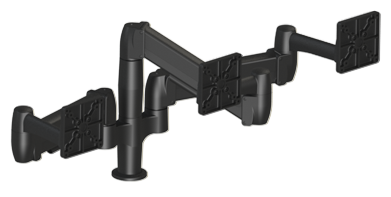

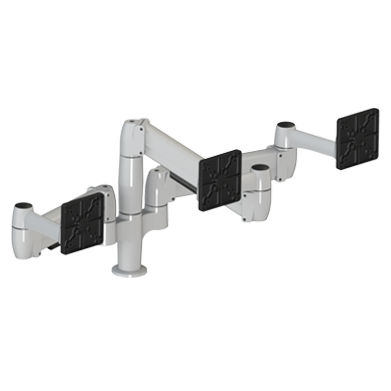

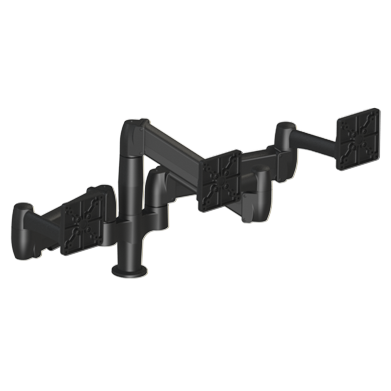

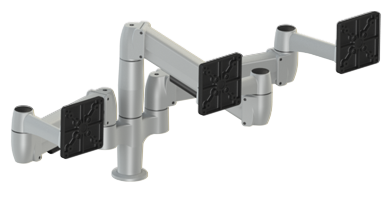

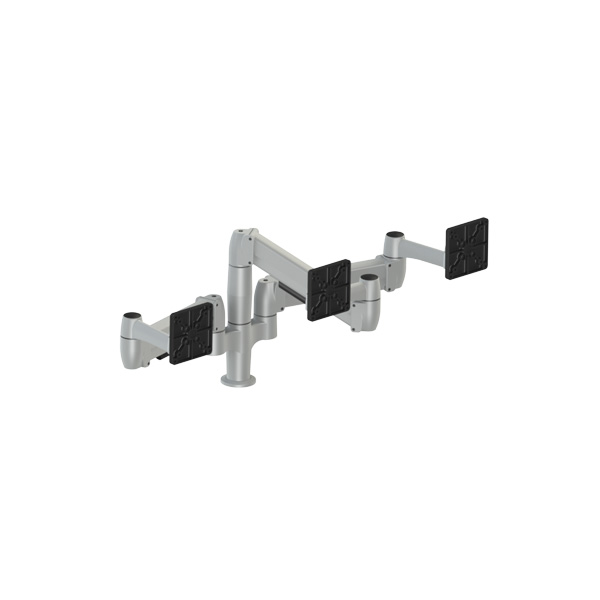

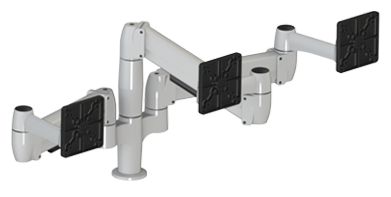

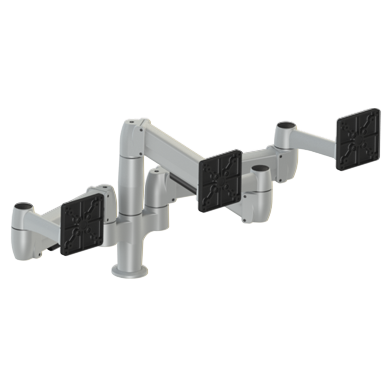

ErgoAdvantage Modula Triple 3-Monitor Arm

Specifcations

Technical Specifications

• Thermo -fused polyester finish
• High pressure die – cast aluminum construction
• 5 – axis position adjustment
• Conforms to VESA 75mm x 75mm, 100mm x 100mm and 100mm x 200mm mounting patterns
• 40 degrees of tilt (20 degrees /20 degrees – )
• 360 degree monitor rotation
• 360 degree arm rotation
• 2.5” (63.5mm) depth in the folded position
• 4” (355.6mm) of travel (7” (177.8mm) above the center of hub and 7” (177.80mm) – below the center of hub)
• Gas spring standard 5-16lbs. (2.67kg–7.25kg)
• Gas spring options, 2-10lbs. (.90kg–4.53kg) and 15-32lbs. (6.8kg 14.51kg)
• Quick Change Mount and Direct Mount for monitor application
• Mounts available: Bolt through, C-Clamp, Large C-Clamp, Grommet, Single Resolve, Double Resolve, Race, Wall, Column, SpaceBeam 1, SpaceBeam 2, Adjustable Slat-walls and a multitude of panel system brackets.

Benefits

• Security – Keep your monitors and hardware safe with anti-theft features.
• Storage – Keep monitors up and out of the way to increase work flow area.
• Organization – Easy access and alignment for multiple monitor or laptop applications.
• Ergonomic – A wide range of adjustments puts your monitor in the most ergonomic position for your needs.
• Space – Increases space efficiencies by positioning the monitor on an arm. This makes wasted space usable.
• Technology – Flexible and adaptable for the inevitable change.
• Environment – Sustainability is an inherent design feature.

Environmental Design Attributes

Arm:
• Recycled content of aluminum – 100%
• Recyclable aluminum after use – 100%

Cardboard Packaging:
• Recycled content – 20%
• Recyclable after use – 100%

Pulp Tray:
• Recycled content – 100%
• Recyclable after use – 100%

Plastic Packaging:
• Low density polyethylene
• Recycled content – 30%
• Recyclable after use – 100%
