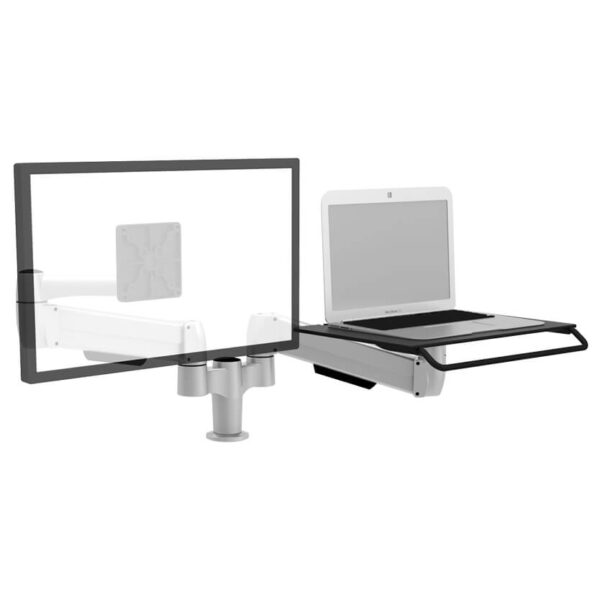

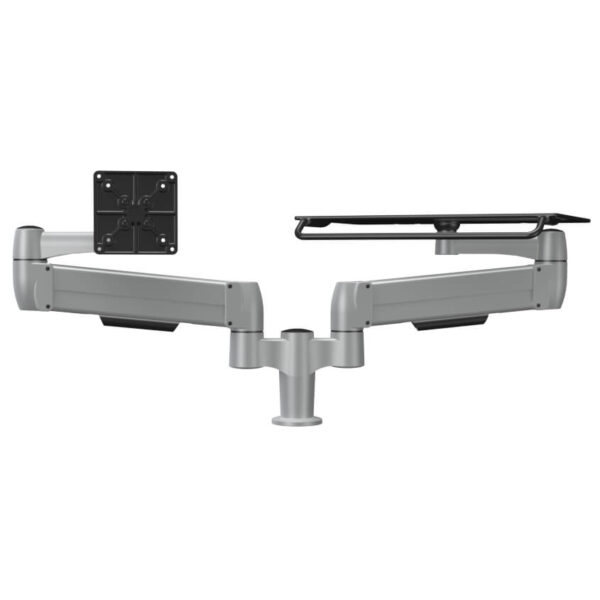

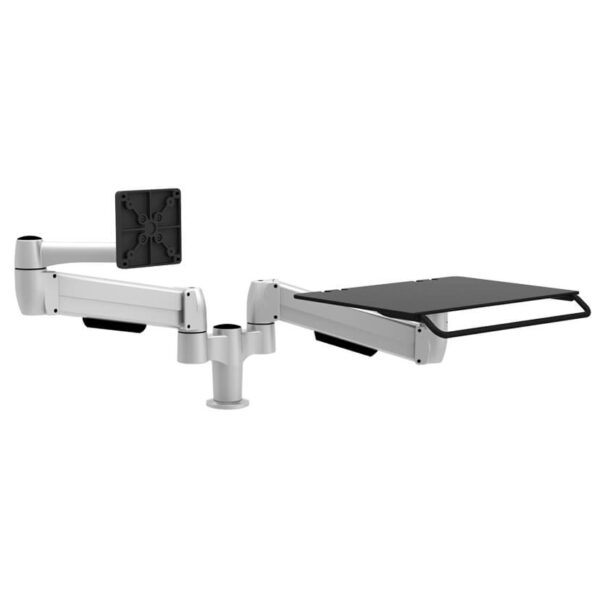

Name: ErgoAdvantage Modula Tandem Laptop + Monitor Arm System
SKU: 64.S012-S01T
Price: 534.60 USD
Availability: InStock

Description

The ErgoAdvantage Modula Tandem Laptop Monitor Arm System is a great solution for those who never have enough space on their desk for both their flat-panel monitor and portable laptop. Besides getting the laptop off your desktop, you also protect it from spills and ensure it can be adjusted to an ergonomically-correct viewing height. Standard VESA and universal Quick-change mounts make it easier to install your monitor, and a variety of desk mounting options, from bolt-thru to clamp-on, give you the choice of creating a temporary or more permanent installation that will fit virtually any desktop or grommet array. The System supports monitors from 2 to 30 pounds, appropriate for both today’s lighter-weight hi-tech monitors and heavier-duty units.

We offer, for both the Laptop and Monitor selection, a wide array of arm specifications that allow different degrees of monitor rotation, horizontal and vertical movement, tilt and more to give you the most freedom of movement for your users’ application and work style. We also feature a Sit-stand desk option which offers a greater range of horizontal adjustment for adjustable-height desks.

If you don’t see something that fits your space (or simply aren’t sure), call us and we’ll help you choose!

Benefits

•   Security – Keep your monitors and hardware safe with anti-theft features.
•   Storage – Keep monitors up and out of the way to increase work flow area.
•   Organization – Easy access and alignment for multiple monitor or laptop applications.
•   Ergonomic – A wide range of adjustments puts your monitor in the most ergonomic position for your needs.
•   Space – Increases space efficiencies by positioning the monitor on an arm. This makes wasted space usable.
•   Technology – Flexible and adaptable for the inevitable change.
•   Environment – Sustainability is an inherent design feature.

ErgoAdvantage SA01LPBT ErgoAdvantage Modula Laptop Monitor Installation Instructions

ErgoAdvantage Modula Laptop Monitor Arm Brochure

Specifcations

Technical Specifications

•   Thermo-fused polyester finish
•   High pressure die – cast aluminum construction
•   5 – axis position adjustment
•   Conforms to VESA 75mm x 75mm, 100mm x 100mm and 100mm x 200mm mounting patterns
•   40 degrees of tilt (20 degrees /20 degrees – )
•   360 degree monitor rotation
•   360 degree arm rotation
•   2.5” (63.5mm) depth in the folded position
•   4” (355.6mm) of travel (7” (177.8mm) above the center of hub and 7” (177.80mm) – below the center of hub)
•   Gas spring standard 5 – 16lbs. (2.67kg–7.25kg)
•   Gas spring options, 2-10lbs. (.90kg–4.53kg) and 15-32lbs. (6.8kg 14.51kg)
•   Quick Change Mount and Direct Mount for monitor application
•   Mounts available: Bolt through, C-Clamp, Large C-Clamp, Grommet, Single Resolve, Double Resolve, Race, Wall, Column, Adjustable Slat-walls and a multitude of panel system brackets.

Environmental Design Attributes

Arm:
• Recycled content of aluminum – 100%
• Recyclable aluminum after use – 100%

Cardboard Packaging:
• Recycled content – 20%
• Recyclable after use – 100%

Pulp Tray:
• Recycled content – 100%
• Recyclable after use – 100%

Plastic Packaging:
•   Low density polyethylene
•   Recycled content – 30%
•   Recyclable after use – 100%

Options

How to select options

1. MOUNTING OPTIONS:

BT – VESA MOUNTING PLATE

75mm x 75mm, 100mm x 100mm and 100mm x 200mm mounting patterns

BT-QC – QUICK CHANGE UNIVERSAL MONITOR MOUNT
ADD $5

2. RANGE FOR MONITOR: determine your extension range

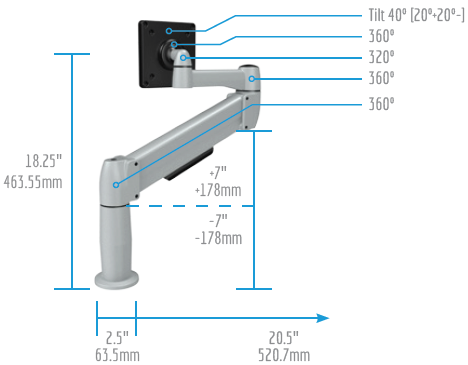

A – STANDARD
adds 6.2″ extension from the center of the mount

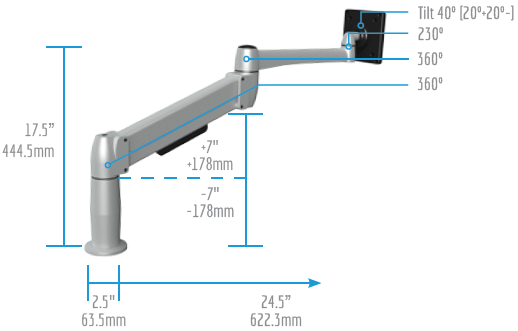

X – LONG
adds 10.7″ extension from the center of the mount ADD $15

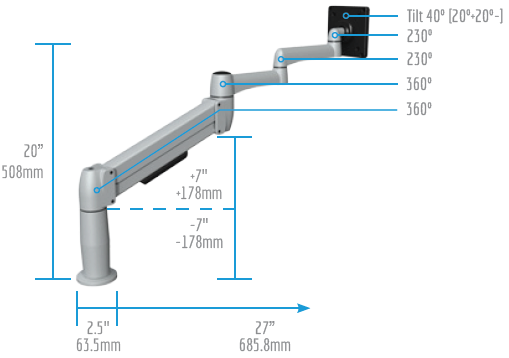

AXP – XP
adds 12.7″ extension from the center of the mount, plus an additional point of articulation ADD $25

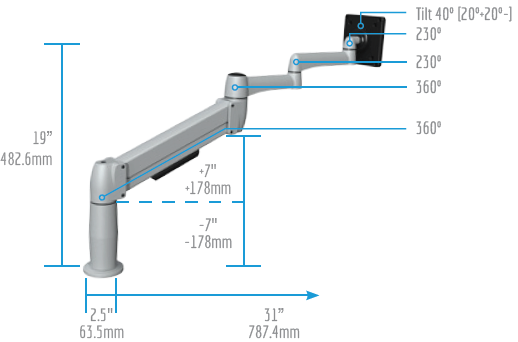

XXP – LONG XP
adds 21.3″ extension from the center of the mount, plus an additional point of articulation ADD $40

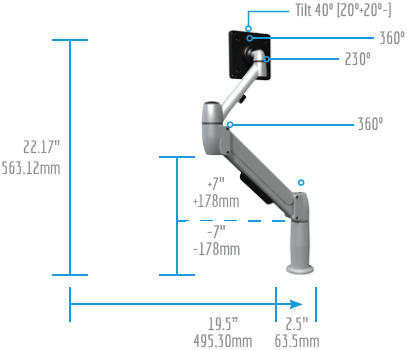

S – SIT-STAND
adds 5″ extension from the center of the mount and 3.9″ in height to allow monitor to adjust from seated to standing positions

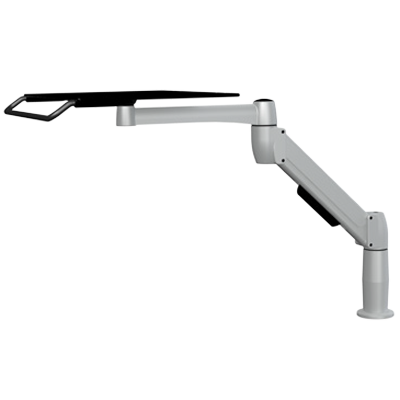

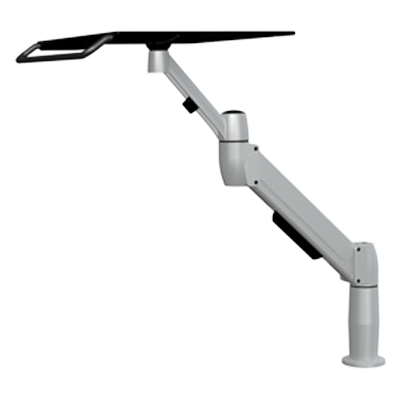

3. RANGE FOR LAPTOP: determine your extension range

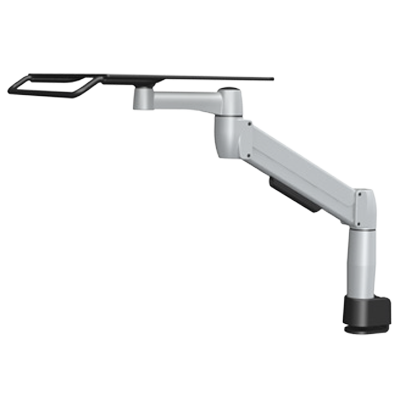

A – STANDARD
adds 6.2″ extension from the center of the mount

X – LONG
adds 10.7″ extension from the center of the mount ADD $15

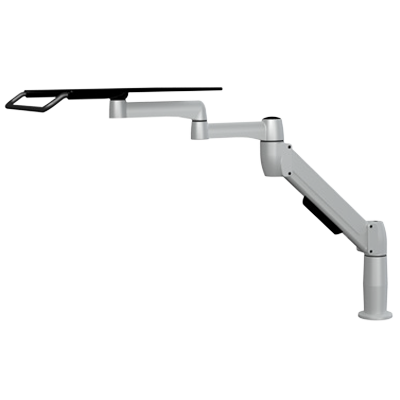

AXP – XP
adds 12.7″ extension from the center of the mount ADD $25

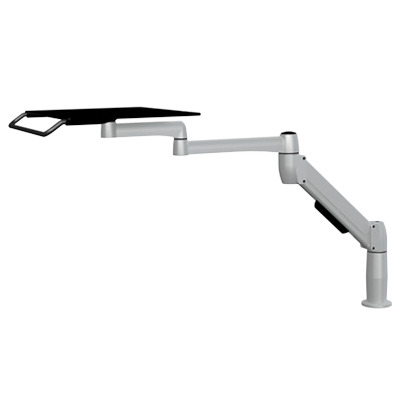

XXP – LONG XP
adds 21.3″ extension from the center of the mount, plus an additional point of articulation ADD $40

S – SIT-STAND
adds 5″ extension from the center of the mount and 3.9″ in height to allow laptop to adjust from seated to standing positions

4. WEIGHT RANGE:

V400GS – 2 to 10 lbs.

Standard – 5-16 lbs.

V950GS – 15-30 lbs.

5. OPTIONAL HEIGHT EXTENSION: add 4, 6 or 8′ additional height to the 5″ hub

X4 – 4″ extension ADD $10

X6 – 6″ extension ADD $20

X8 – 8″ extension ADD $25

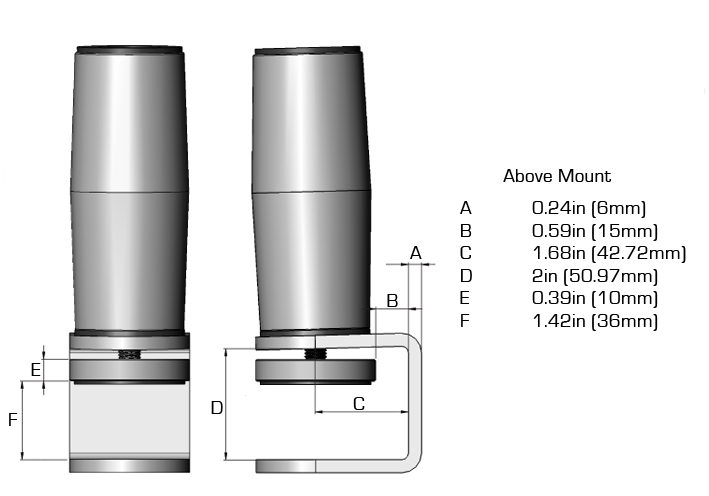

6. MOUNTING OPTIONS:

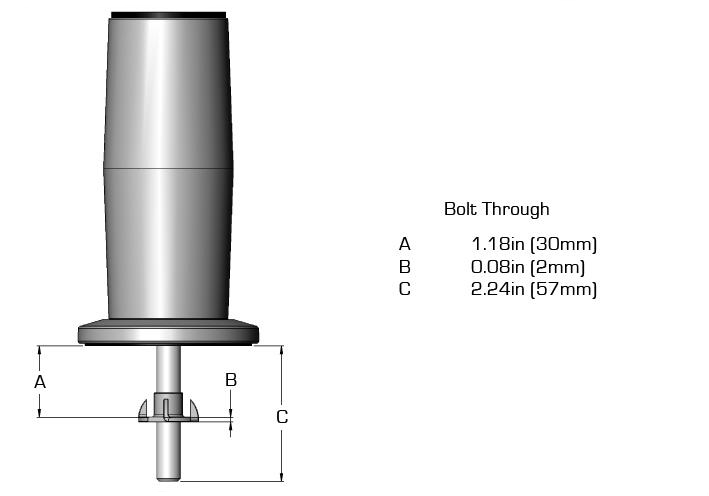

BT – BOLT-THROUGH 5″ H

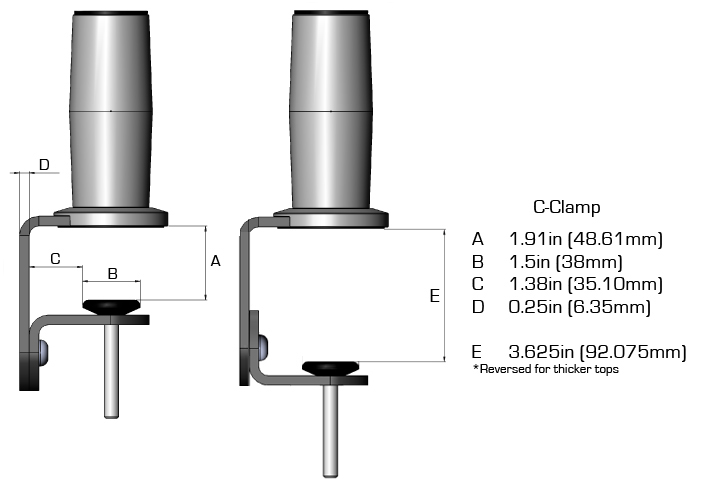

C-CLAMP 5″ H #CC ADD $20

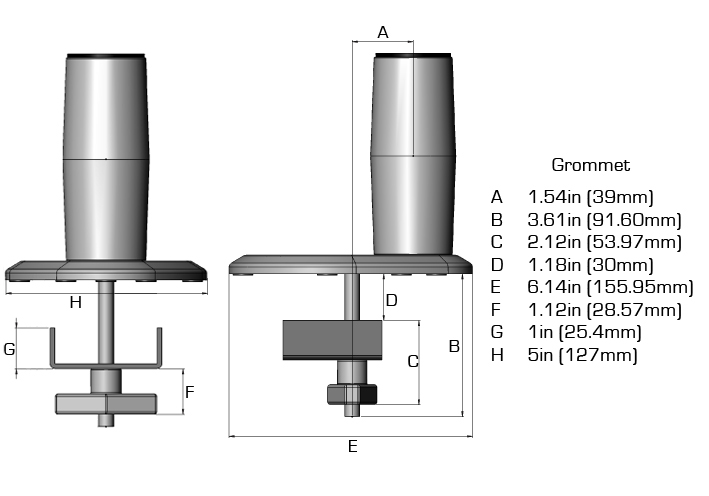

GT – GROMMET 5″ H ADD $20

CL – LARGE C-CLAMP 5″ H
with enlarged base ADD $20

CL – LARGE C-CLAMP 5″ H
with enlarged base ADD $20

CUSTOM MOUNTS: We carry mounting solutions compatible with Steelcase, Allsteel, Haworth, Teknion, Knoll and more. Call us for a custom quote for mounting solutions engineered to these manufacturers’ specifications.

7. FINISH COLOR:

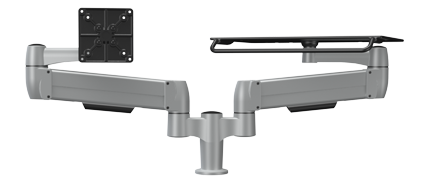

PLT – Platinum

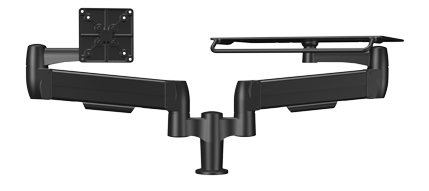

BLK – Black

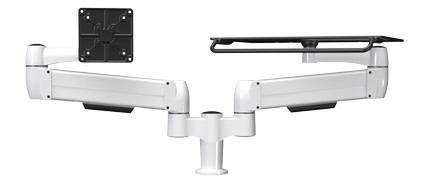

WHT – White

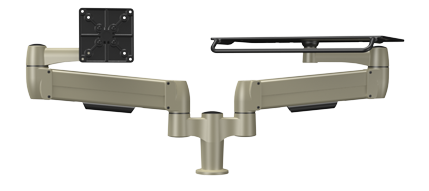

CHM – Champagne

8. ADDITIONAL OPTIONS:

SSB003 - SECURITY SCREW (locks monitor to arm mount, requires Torx security bit to remove)

SSB003 – SECURITY SCRE
(locks monitor to arm mount, requires Torx security bit to remove)
ADD $5

HB-SEC – SECURITY SET SCREW
(locks monitor arm into the hub) ADD $10

SSB-019 – TOUCH SCREEN STOP
adds rotational stop knobs at each point of articulation to stop motion when, for instance, using a touchscreen monitor ADD $25

SSB-018 – 180-degree ROTATION STOP
rotational limiter is added to hub to help prevent monitor collisions ADD $5
