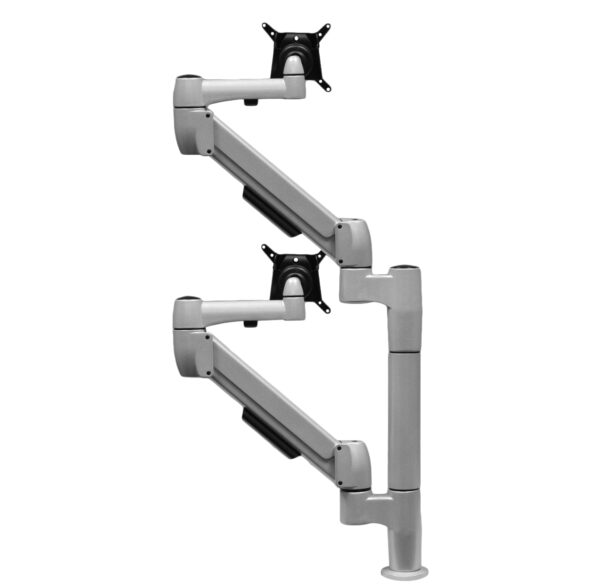

Name: ErgoAdvantage Modula Tiered Monitor Arm
SKU: 64.SA11
Price: 427.57 USD
Availability: InStock

Description

The ErgoAdvantage Modula Tiered Monitor Arm System offers a flexible solution for those using multiple flat-panel monitors but need a more vertical orientation to fit their workspace or application requirements. Standard VESA and universal Quick-change mounts make it easier to connect monitors, and the standard bolt-through desktop mount safely and securely holds up to eight monitors at once–from the Single Offset option, which holds two, to the Quad-stacked option which was designed to display four monitors each for two users on opposite sides of a desk. The System supports from 2 to 30 pounds per monitor, appropriate for both today’s lighter-weight hi-tech monitors and heavier-duty units.

We offer a wide array of arm specifications that allow different degrees of monitor rotation, horizontal and vertical movement, tilt and more to give you the most freedom of movement for your users’ application and work style. We also feature a Sit-stand desk option which offers a greater range of horizontal adjustment for adjustable-height desks. Each System is available in your choice of today’s hottest colors for the office.

If you don’t see something that fits your space (or simply aren’t sure), call us and we’ll help you choose!

64.SA11BT-PLT – ErgoAdvantage Modula Tiered Monitor Arm with Vesa Mounting Plate Monitor Mount Installations

64.SA11BT-PLT - ErgoAdvantage Modula Tiered Monitor Arm with Vesa Mounting Plate Monitor Mount Installations

64.SA11BT-QC – ErgoAdvantage Tiered Modula Monitor Arm with Quick Change Universal Monitor Mount Installations

64.SA11BT-QC - ErgoAdvantage Tiered Modula Monitor Arm with Quick Change Universal Monitor Mount Installations

ErgoAdvantage Modula Monitor Arm Brochure

Specifcations

Technical Specifications

•   Thermo -fused polyester finish
•   High pressure die – cast aluminum construction
•   5 – axis position adjustment
•   Conforms to VESA 75mm x 75mm, 100mm x 100mm and 100mm x 200mm mounting patterns
•   40 degrees of tilt (20 degrees /20 degrees–)
•   360 degree monitor rotation
•   360 degree arm rotation
•   2.5” (63.5mm) depth in the folded position
•   4” (355.6mm) of travel (7” (177.8mm) above the center of hub and 7” (177.80mm) – below the center of hub)
•   Gas spring standard 5-16lbs. (2.67kg–7.25kg)
•   Gas spring options, 2-10lbs. (.90kg–4.53kg) and 15-32lbs (6.8kg 14.51kg)
•   Quick Change Mount and Direct Mount for monitor application
•   Mounts available: Bolt through

Benefits

•   Security – Keep your monitors and hardware safe with anti-theft features.
•   Storage – Keep monitors up and out of the way to increase work flow area.
•   Organization – Easy access and alignment for multiple monitor or laptop applications.
•   Ergonomic – A wide range of adjustments puts your monitor in the most ergonomic position for your needs.
•   Space – Increases space efficiencies by positioning the monitor on an arm. This makes wasted space usable.
•   Technology – Flexible and adaptable for the inevitable change.
•   Environment – Sustainability is an inherent design feature.

Environmental Design Attributes

Arm:
• Recycled content of aluminum – 100%
• Recyclable aluminum after use – 100%

Cardboard Packaging:
• Recycled content – 20%
• Recyclable after use – 100%

Pulp Tray:
• Recycled content – 100%
• Recyclable after use – 100%

Plastic Packaging:
•   Low density polyethylene
•   Recycled content – 30%
•   Recyclable after use – 100%

Options

How to select options

1. MONITOR LAYOUT:

S11 – SINGLE OFFSET (TWO MONITORS)

2. MOUNTING OPTIONS:

BT – VESA MOUNTING PLATE

75 mm x 75 mm, 100 mm x 100 mm and 100 mm x 200 mm mounting patterns

BT-QC – QUICK CHANGE UNIVERSAL MONITOR MOUNT
ADD $10

3. RANGE FOR MONITOR: determine your extension range

A – STANDARD
adds 6.2″ extension from the center of the mount

X – LONG
adds 10.7″ extension from the center of the mount ADD $15

AXP – XP
adds 12.7″ extension from the center of the mount, plus an additional point of articulation ADD $25

XXP – LONG XP
adds 21.3″ extension from the center of the mount, plus an additional point of articulation ADD $40

S – SIT-STAND
adds 5″ extension from the center of the mount and 3.9″ in height to allow monitor to adjust from seated to standing positions

4. WEIGHT RANGE :

V400GS – 2 to 10 lbs.

Standard – 5-16 lbs.

V950GS – 15-30 lbs.

5. MOUNTING OPTIONS:

BT – BOLT-THROUGH 5″ H (Standard)

Please call us for more information on mounting options for the Modula Tiered Monitor Arm.

6. FINISH COLOR:

PLT – Platinum

BLK – Black

WHT – White

CHM – Champagne

7. ADDITIONAL OPTIONS:

SSB003 - SECURITY SCREW (locks monitor to arm mount, requires Torx security bit to remove)

SSB003 – SECURITY SCRE
(locks monitor to arm mount, requires Torx security bit to remove)
ADD $10

HB-SEC – SECURITY SET SCREW
(locks monitor arm into the hub) ADD $20

SSB-019 – TOUCH SCREEN STOP
adds rotational stop knobs at each point of articulation to stop motion when, for instance, using a touchscreen monitor ADD $40

SSB-018 – 180-degree ROTATION STOP
rotational limiter is added to hub to help prevent monitor collisions ADD $10
